Front DBA42808S DB2402XP Xtreme Performance Combo Pack Golf 6R S3 8P

Description

Front DBA42808S DB2402XP Xtreme Performance Combo Pack Golf 6R S3 8P

Front DBA42808S DB2402XP Xtreme Performance Combo Pack Golf 6R S3 8P

Feature Description	Advantage	Benefit
‘T3 Slot 48 precision CNC machined slots’	Tri-Symmetrical curve slots dampens the vibration harmonics or noise Increased number of out-gassing exit points for brake pad friction gasses to escape through Universal slot design	A quieter, responsive and smoother brake pedal feel Increases the consistency and effectiveness of every brake stop Eliminates the need for left and right discs
Kangaroo Paw – 144 diamond and tear drop pillar ventilation system	Increased surface area resulting in greater heat dissipation	Minimises brake fade and increases braking effectiveness Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs
XG150 High Carbon Alloyed Iron	An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time	Minimises warping and cracking and prolongs the service life of the rotor
Thermal Stability Profiling	Special formulation designed to respond to DBA’s TSP process	Minimises warping and cracking and prolongs the service life of the rotor
Thermographic Temperature Monitoring	Heat paint markings change colour at specific temperature thresholds When temperature thresholds are exceeded paint markings will permanently change colours	Offers the driver a clear indication of peak braking temperatures Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims
Paint protection on non-friction areas	Reduces corrosion Enhances appearance	Stops any unsightly rust formation Adds value to the product

Xtreme Performance (XP)

DBA’s Xtreme Performance brake pads have been designed for drivers seeking high initial bite and friction consistency from low to high temperatures, the XP range are for heavy duty applications, where higher friction levels are required, in order to safely brake under extreme conditions.

Street Performance part numbers are denoted by the suffix (XP).

DBA recommends Xtreme Performance brake pads for street performance and police pursuit vehicles, as well as club track days, heavy towing and upgraded 4WD’s.

DBA recommends T3 slotted rotors in the 4000 & 5000 Series for best stopping performance.

Specifications:

• Semi-metallic, carbon fibre friction material
• G-G Class Friction (0.45 average mu from low to high temperatures)
• Excellent high temperature performance
• Optimal braking consistency up to 550℃ (1022℉)

What is included:

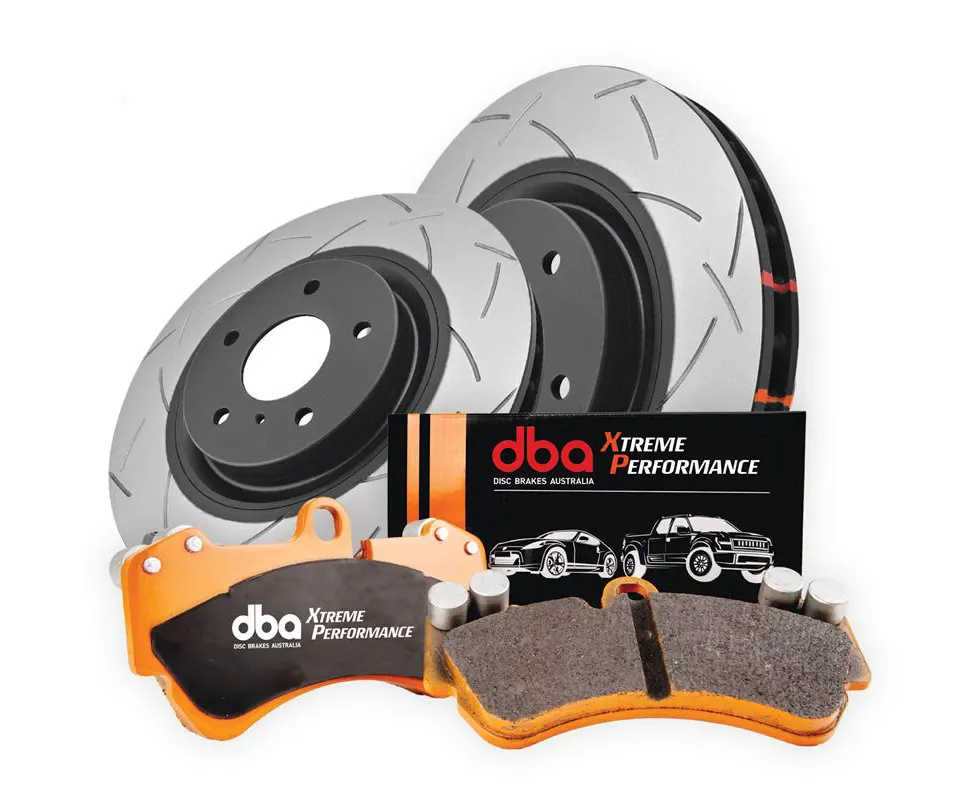

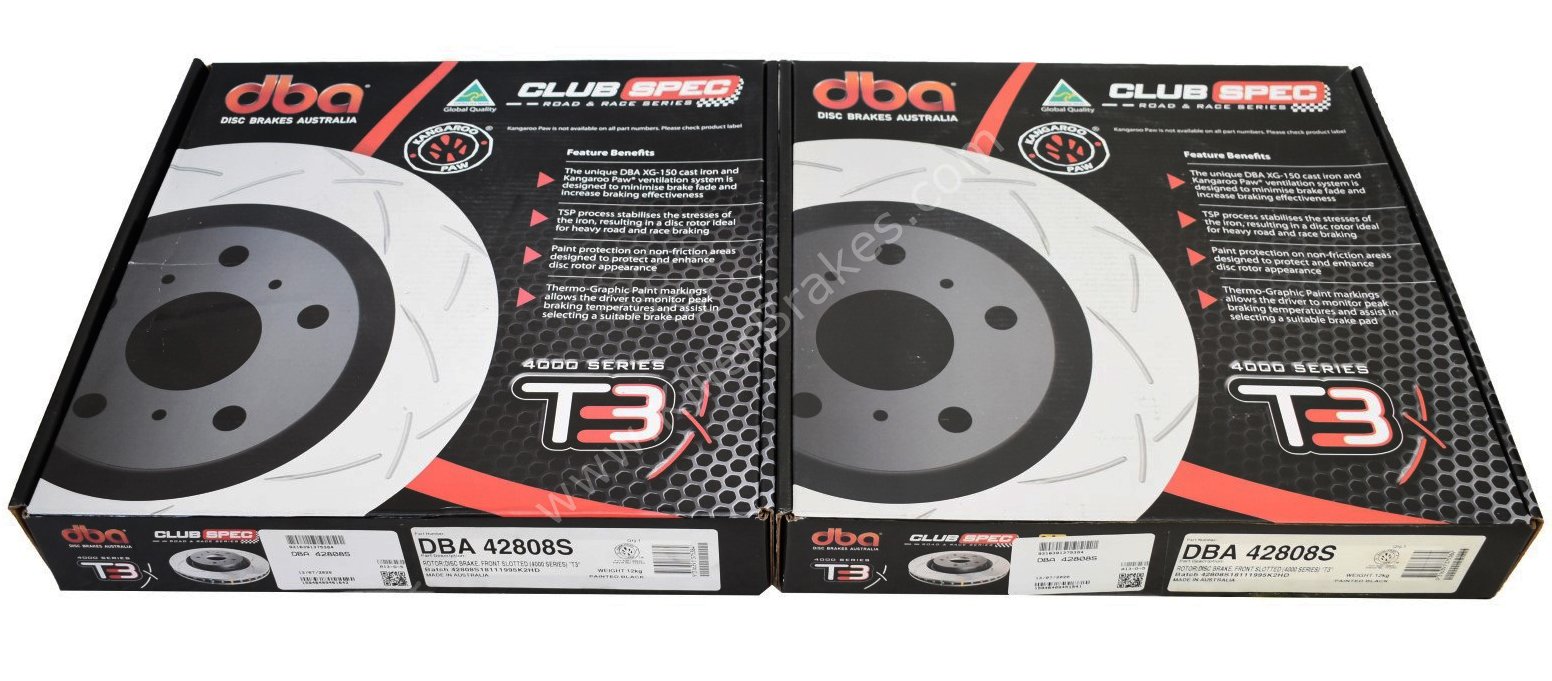

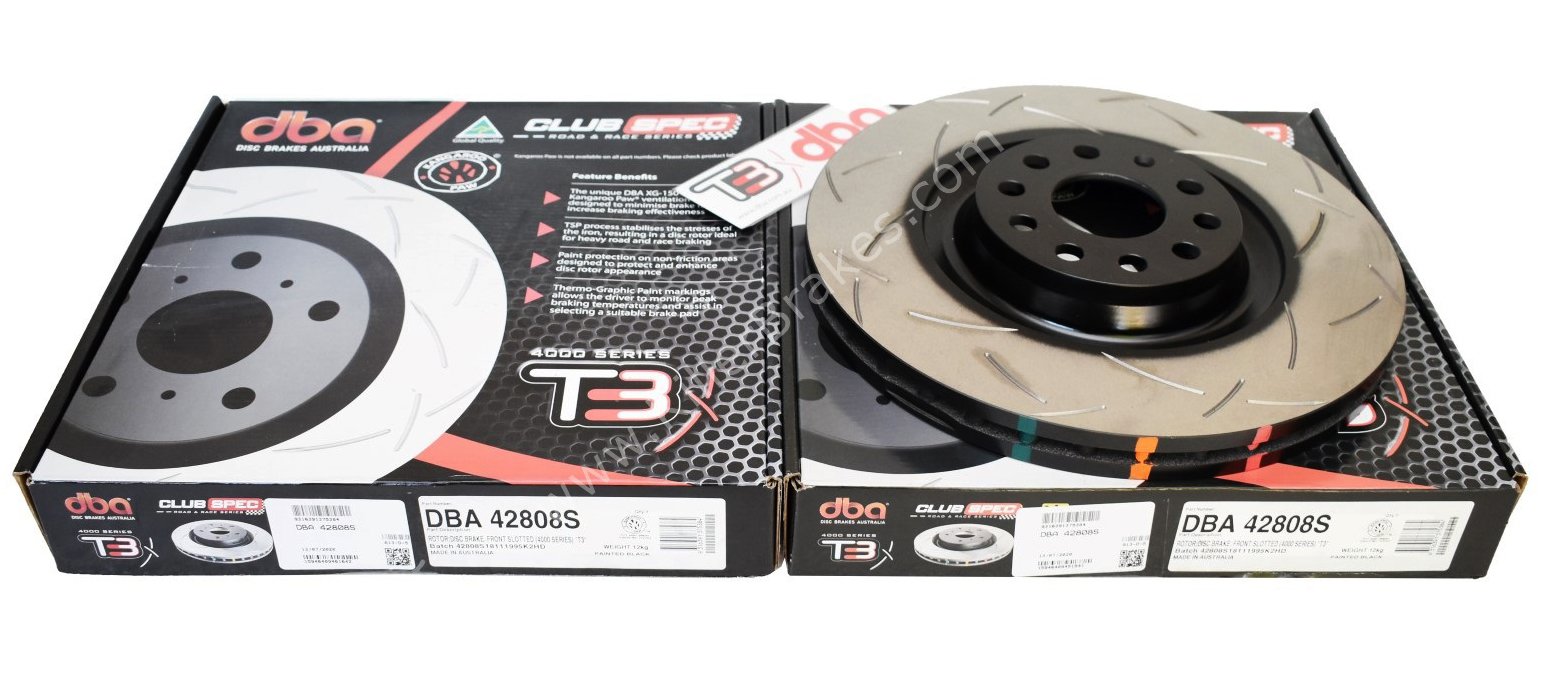

• 2x(1Pair) Front DBA Disc Brakes Product code: DBA42808S 345x30mm- 4000 series – T3 Slotted (Vw/Audi product code 1K0615301M) New
• 1X Set of Front Brake Pads with wear sensor Xtreme Performance DBA DB2402XP (Audi Product Code:8P0698151) New

Technical Information:

• Diameter (mm): 345
• Height (mm): 49.7
• Thickness (mm): 30
• Min. Thickness (mm): 28
• Inner Diameter (mm): 65
• Number of Holes: 5
• PCD (mm): 112
• Disc Vent: Kangaroo Paw
• Axle: Front
• Weight (kg): 12

Brake Pads Size:

• Height [MM]:156
• Width [MM]:72.8
• Pad Thickness [MM]:19.3
• FMSI:8468-D1359
• Weight [KG]:2.56

Compatibility:

Axle       Make    Model   Engine / Year

• Front AUDI        S3 8P     2006-2012            0 Turbo 265BHP PR-1ZK (2006-2012)
• Front VOLKSWAGEN     Golf (Mk6)          2009-2013            0 Turbo R 270BHP PR-1ZK (2009-2013)

Minimum wheel size 17”

For more information please contact us at Office@killerbrakes.com
