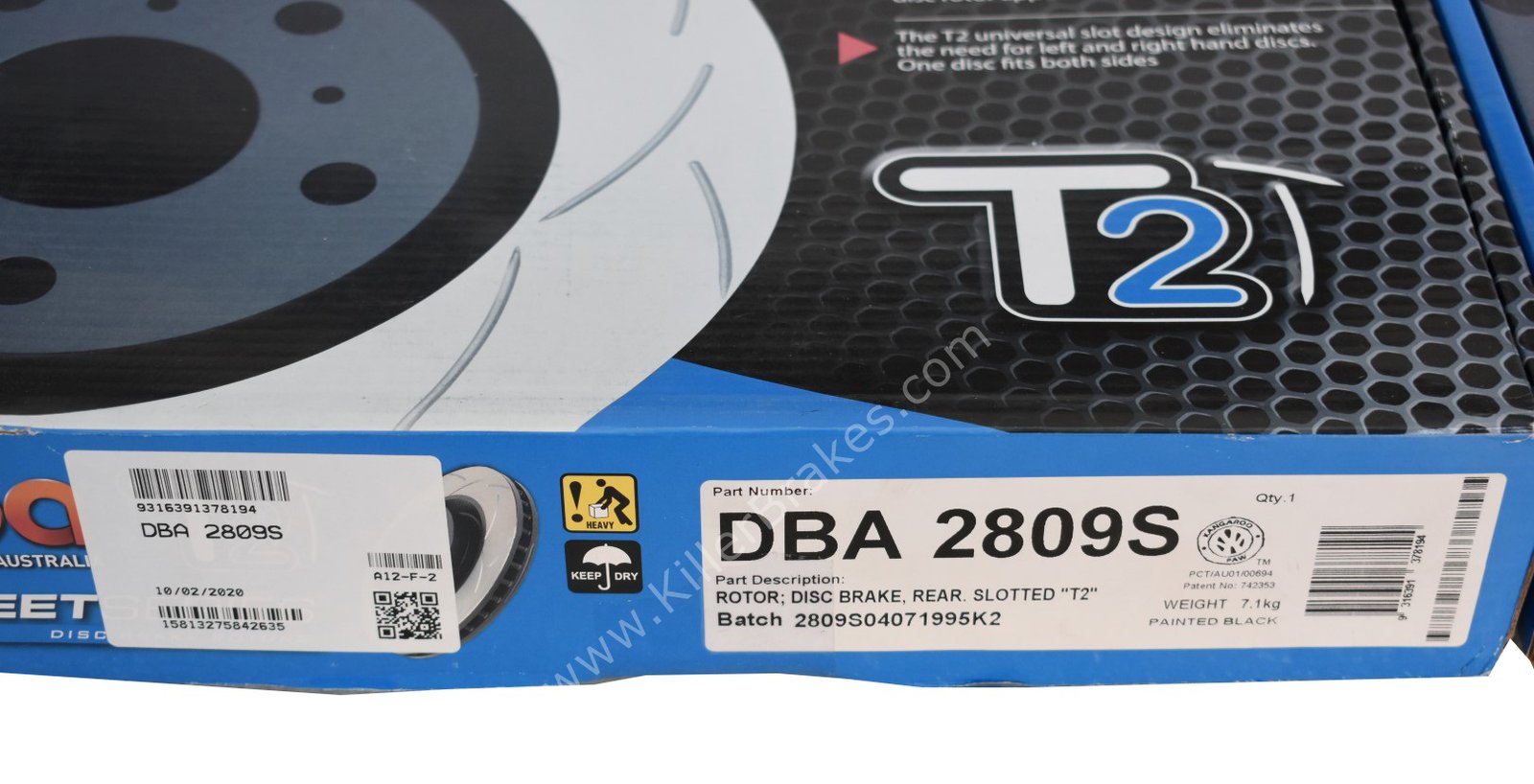

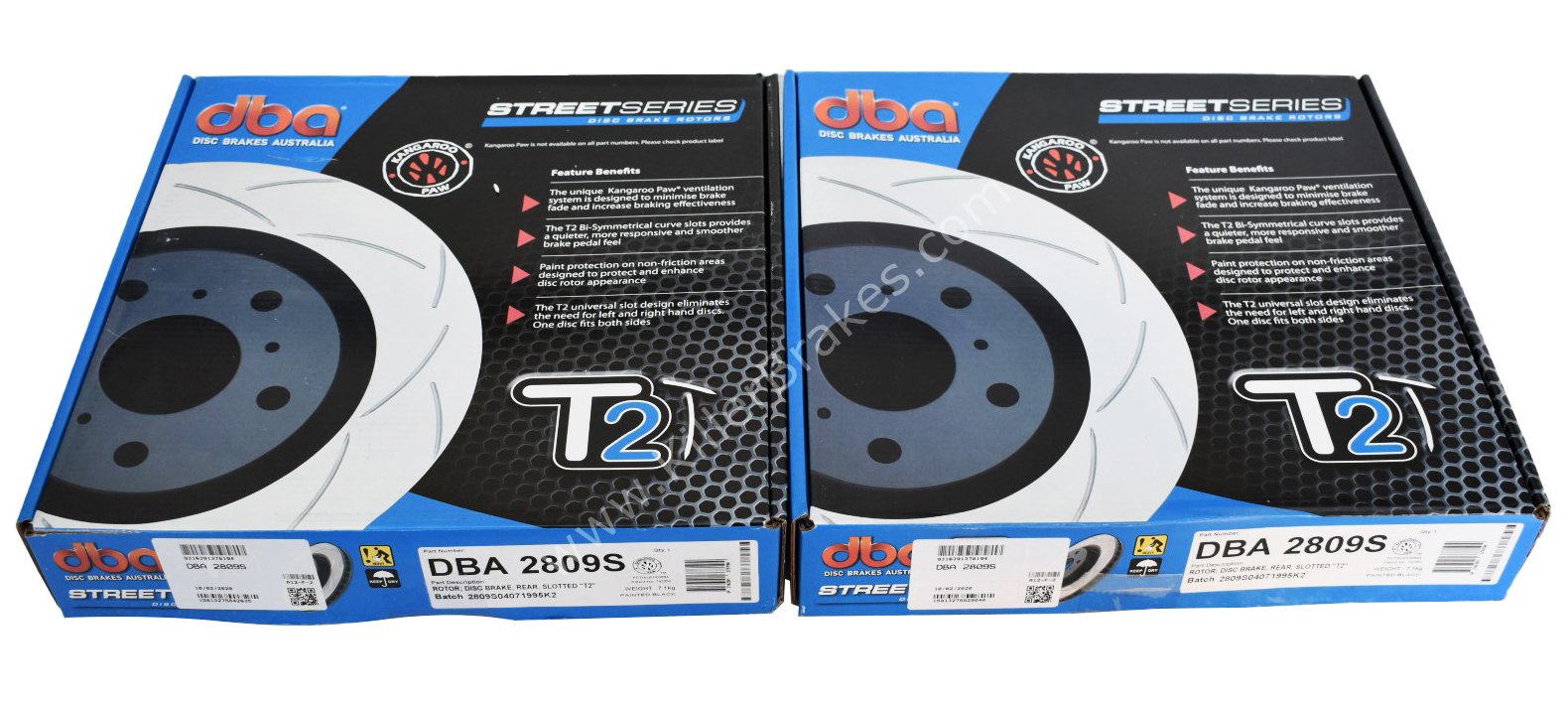

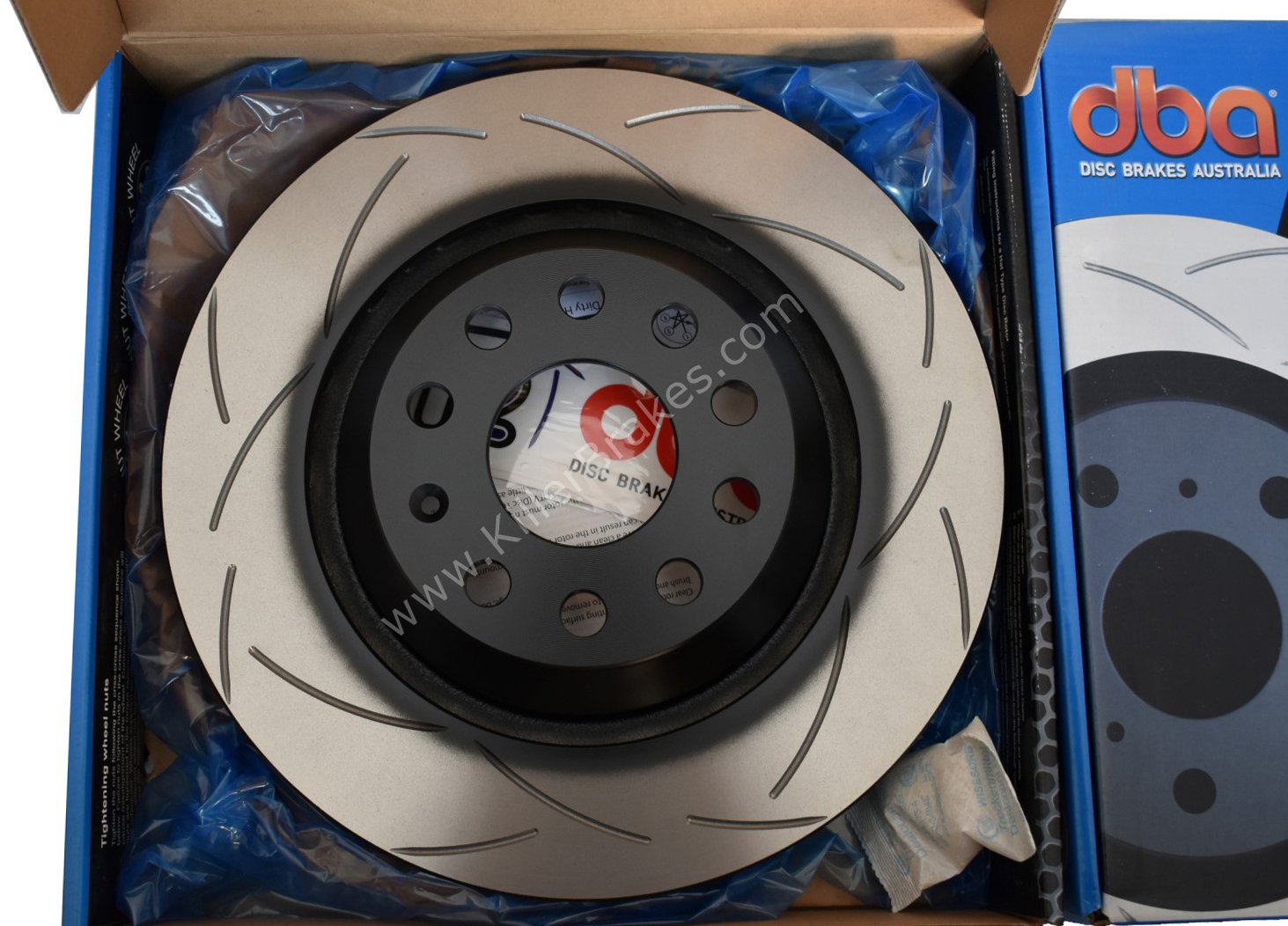

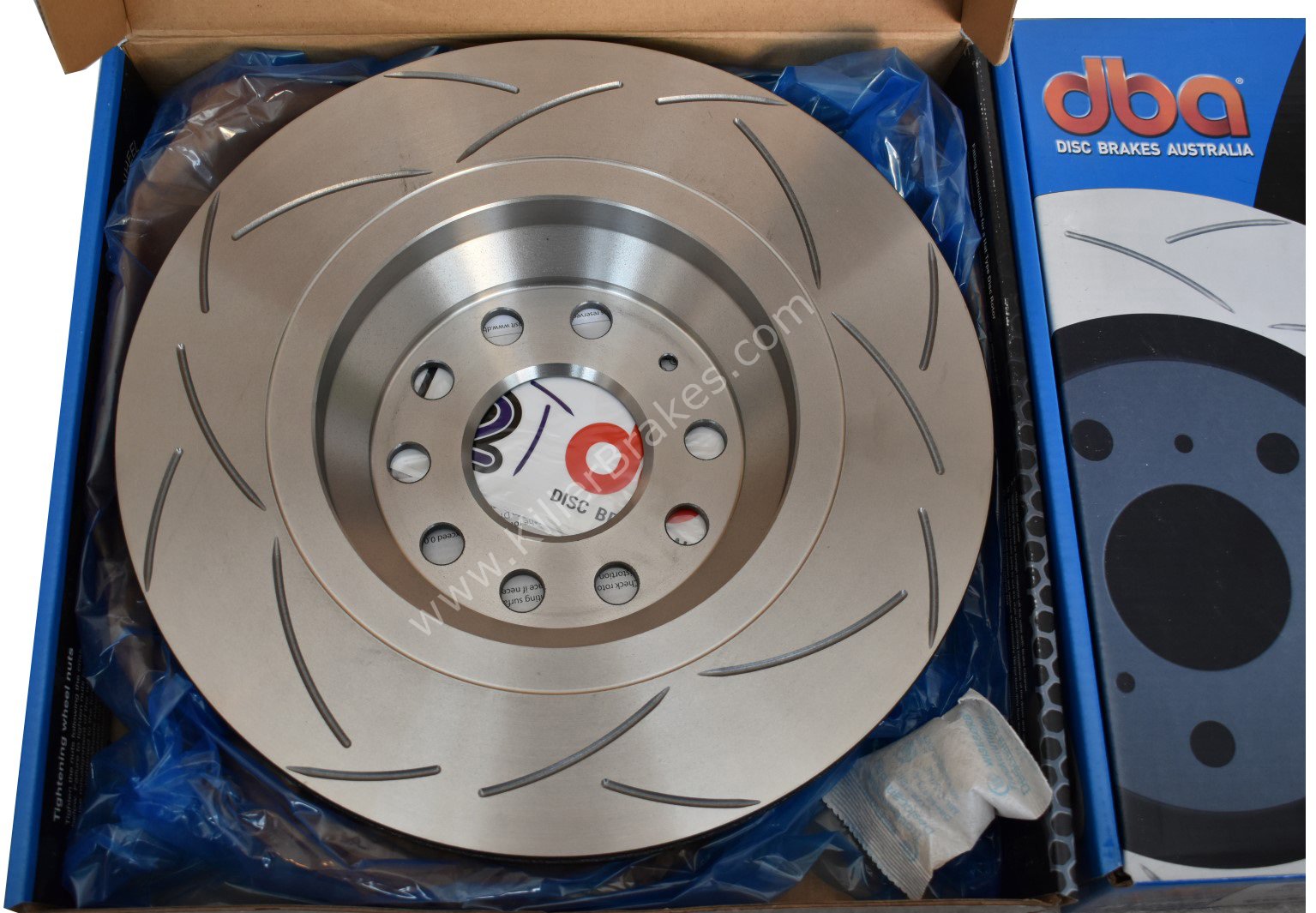

Rear DBA2809S Brake Discs 310x22mm Street Series T2 Slotted New

Description

Rear DBA2809S Brake Discs 310x22mm Street Series T2 Slotted New

Rear DBA2809S Brake Discs 310x22mm Street Series T2 Slotted New

Feature Description	Advantage	Benefit
‘T3 Slot 48 precision CNC machined slots’	Tri-Symmetrical curve slots dampens the vibration harmonics or noise Increased number of out-gassing exit points for brake pad friction gasses to escape through Universal slot design	A quieter, responsive and smoother brake pedal feel Increases the consistency and effectiveness of every brake stop Eliminates the need for left and right discs
Kangaroo Paw – 144 diamond and tear drop pillar ventilation system	Increased surface area resulting in greater heat dissipation	Minimises brake fade and increases braking effectiveness Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs
XG150 High Carbon Alloyed Iron	An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time	Minimises warping and cracking and prolongs the service life of the rotor
Thermal Stability Profiling	Special formulation designed to respond to DBA’s TSP process	Minimises warping and cracking and prolongs the service life of the rotor
Thermographic Temperature Monitoring	Heat paint markings change colour at specific temperature thresholds When temperature thresholds are exceeded paint markings will permanently change colours	Offers the driver a clear indication of peak braking temperatures Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims
Paint protection on non-friction areas	Reduces corrosion Enhances appearance	Stops any unsightly rust formation Adds value to the product

What is included:

• 2x(1Pair) Rear DBA2809S Brake Discs 310x22mm Street Series T2 Slotted (Oem Product code:1K0615601N) New

Technical Information:

    Diameter (mm): 310

    Height (mm): 48.5

    Thickness (mm): 22

    Min. Thickness (mm): 20

    Inner Diameter (mm): 65

    Number of Holes: 5

    Disc Vent: Kangaroo Paw

    Axle: Rear

    Weight (kg): 7.68

Compatibility:

• Axle       Make    Model   Engine / Year
• Rear       AUDI     A3 quattro (8P) 3.2 (2003-2009)
• Rear       AUDI     RS3 (8P)               2.5 Turbo (2011-2013)
• Rear       AUDI     RS3 (8V)               2.5 Turbo (2015-2016)
• Rear       AUDI     RS3 (8V)               2.5 Turbo (2017-)
• Rear       AUDI     S3 (8P)  2.0 Turbo PR-1LK (2006-2012)
• Rear       AUDI     S3 (8P)  2.0 Turbo PR-1ZK (2006-2012)
• Rear       AUDI     S3 (8V) 2.0 Turbo (2012-)
• Rear       AUDI     S3 (8V) 2.0 Turbo (2013-)
• Rear       AUDI     S3 (8V) 2.0 Turbo (2016-)
• Rear       AUDI     TT (8S)  2.0 Turbo (2014-)
• Rear       AUDI     TT quattro (8S)  2.0 Turbo (2014-)
• Rear       AUDI     TTS quattro (8S)                2.0 Turbo (2014-)
• Rear       AUDI     TTS quattro (8S)                2.0 Turbo (2015-)
• Rear       AUDI     TTRS (8S)             2.5 Turbo(2015-present)
• Rear       SEAT      Leon (5F)             2.0 Turbo Cupra (2014-2016)
• Rear       SEAT      Leon (5F)             2.0 Turbo Cupra (2015-2017)
• Rear       SEAT      Leon (5F)             2.0 Turbo Cupra (2015-2018)
• Rear       SEAT      Leon (5F)             2.0 Turbo Cupra (2017-)
• Rear       SEAT      Leon (5F)             2.0 Turbo Cupra (2017-2018)
• Rear       SKODA  Superb (3T)         1.8 Turbo 4WD (2008-2015)
• Rear       SKODA  Superb (3T)         2.0 TD 4WD (2008-2015)
• Rear       SKODA  Superb (3T)         2.0 Turbo (2010-2015)
• Rear       SKODA  Superb (3T)         3.6 4WD (2008-2015)
• Rear       SKODA  Superb (3T)         3.6 4WD (2014-2015)
• Rear       VOLKSWAGEN  Arteon  1.5 Turbo (2018-)
• Rear       VOLKSWAGEN  Arteon  2.0 TD (2017-)
• Rear       VOLKSWAGEN  Arteon  2.0 TD (2018-)
• Rear       VOLKSWAGEN  Arteon  2.0 TD 4motion (2018-)
• Rear       VOLKSWAGEN  Arteon  2.0 Turbo (2018-)
• Rear       VOLKSWAGEN  Arteon  2.0 Turbo 4motion (2017-)
• Rear       VOLKSWAGEN  Arteon  2.0 Twin TD (2017-)
• Rear       VOLKSWAGEN  CC           2.0 Turbo (2012-2017)
• Rear       VOLKSWAGEN  CC           3.6 (2012-2017)
• Rear       VOLKSWAGEN  Eos         3.2 (2006-2009)
• Rear       VOLKSWAGEN  Eos         3.6 (2009-2011)
• Rear       VOLKSWAGEN  Golf (Mk5)          3.2 R32 (2005-2009)
• Rear       VOLKSWAGEN  Golf (Mk6)          2.0 Turbo R (PR-1LK) (2009-2013)
• Rear       VOLKSWAGEN  Golf (Mk6)          2.0 Turbo R (PR-1LM) (2009-2013)
• Rear       VOLKSWAGEN  Golf (Mk6)          2.0 Turbo R (PR-1ZK) (2009-2013)
• Rear       VOLKSWAGEN  Golf (Mk7)          2.0 Turbo GTi (Performance Package) (2013-2017)
• Rear       VOLKSWAGEN  Golf (Mk7)          2.0 Turbo GTi (Performance Package) (2017-)
• Rear       VOLKSWAGEN  Golf (Mk7)          2.0 Turbo GTi Clubsport (2016-)
• Rear       VOLKSWAGEN  Golf (Mk7)          2.0 Turbo GTi Clubsport S (2016-)
• Rear       VOLKSWAGEN  Golf (Mk7)          2.0 Turbo R (2013-)
• Rear       VOLKSWAGEN  Golf (Mk7)          2.0 Turbo R (2017-)
• Rear       VOLKSWAGEN  Passat   2.0 Turbo (2005-2010)
• Rear       VOLKSWAGEN  Passat   2.0 Turbo (2011-2014)
• Rear       VOLKSWAGEN  Passat   2.0 Turbo (2015-)

Minimum wheel size 17”
